PORTA POWER 20 TONNE KIT WITH RAM & RODS

 New and improved website Freight Free

Enquiry
PORTA POWER 20 TONNE KIT WITH RAM & RODS
Click on image for larger photo
Product Code: 11200

PORTA POWER 20 TONNE KIT WITH RAM & RODS
HAND PUMP & EXTENSIONS. SPREADER RAM.
WEDGE HEAD IN 2 STRONG STEEL BOXES
Border Image Border Image
Shop Price: $699.00
Web Price: $699.00  inc tax
Shipping charges may vary and are subject to change based on product dimensions and destination.

Availability: In Stock
Quantity:
Weight: 69 KG
Border Image Border Image

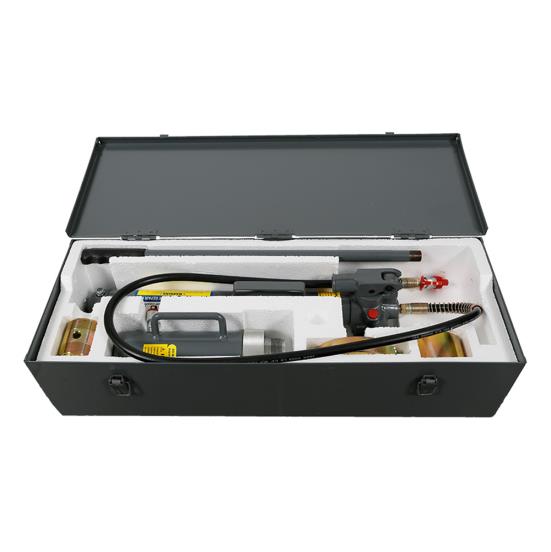

FAMOUS WELBILT BRAND IN 2 BOXES WITH RODS IN ONE BOX & PUMP & 20 TONN RAM IN SECOND BOX

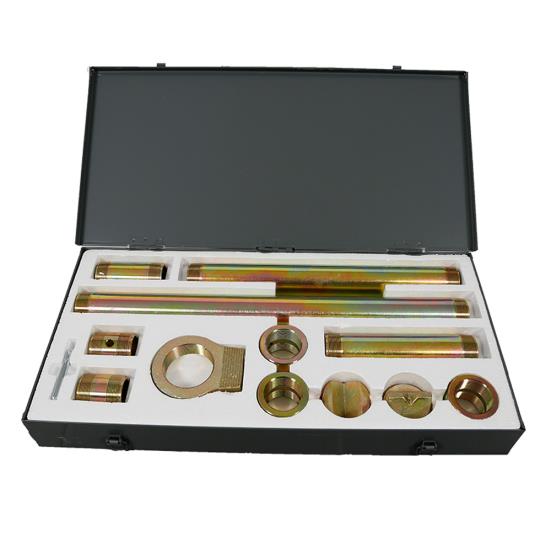

PACK IN 2 STEEL BOXES WITH SCREW END EXTENSIONS ( 4 UNITS ) WITH 11 ATTACHMENTS THAT ARE SCREWED ON
TO THE EXTENSIONS RAM HAS MALE THREAD TO FIT SCREW ON COLLARS

THIS UNIT IS MADE FOR HEAVY DUTY WORK

RAM & PUMP FITTINGS ARE ASIAN TYPE

- PORTA POWER RAM KIT - 20,000KG - INDUSTRIAL GRADE
- MAXIMUM LIFT STROKE :125MM
- CYLINDER MAX LIFTING HEIGHT: 403MM
- CYLINDER HEIGHT CLOSED : 278MM
- WORKING PRESSURE: 69MPA 10,000 PSI

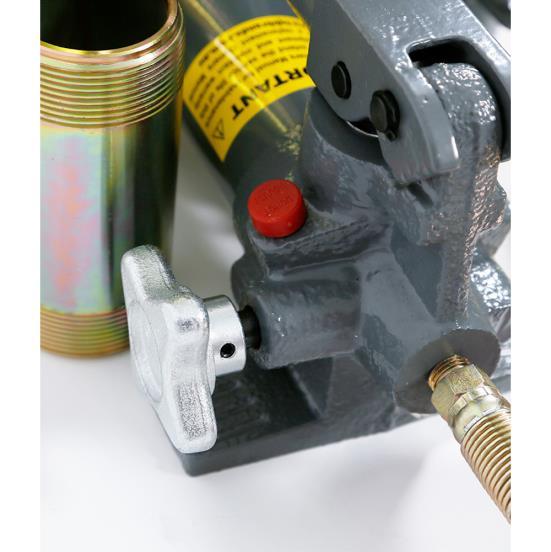

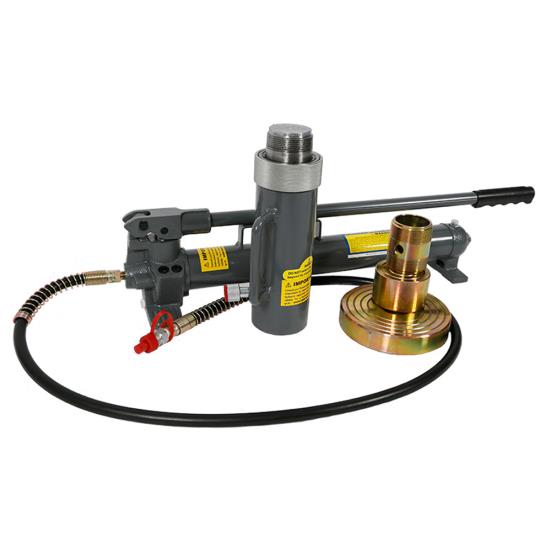

- 2 STAGE HI SPEED HAND PUMP WITH HOSE
- OIL IN CYLINDER FILLED: 400GRAMS USES HYDRAULIC 46
- 20 TON RAM SUPPLIED IN KIT CLOSED LENGTH 278MM LONG, LIFT IS 125MM
- SUPPLIED WITH CHINESE STYLE FITTINGS
- PRODUCT WEIGHT 69KG 2 BOXES ( 76 X 32 X 26 CM )

High quality hydraulic steel cylinder unit results in lower oil pressure needed to raise the load, helping to reduce wear and extend service life
Piston-ram is treated and polished

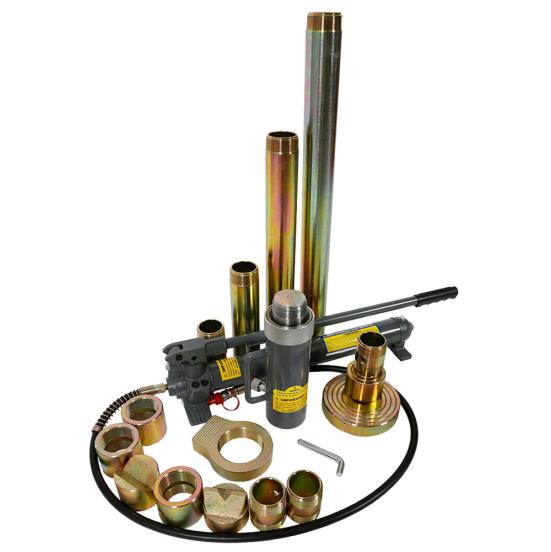

Accessories
700mm extension tube
510mm extension tube
255mm extension tube
125mm extension tube
3 each, 70mm connective tube & 60mm joint connector tube
Base

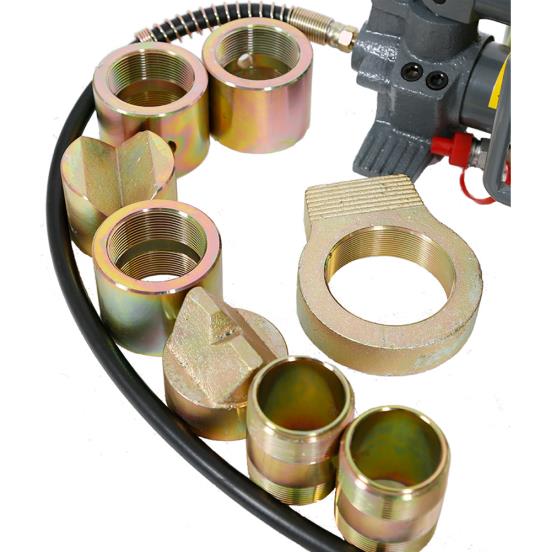

Ram toe Plunger toe Wedge toe V-base Wrench
Specifications

Safe Working Capacity: 20,000kg
Retracted Ram Length: 285mm
Ram Stroke: 125mm
Hydraulic Hose Length: 1470mm
Weight: 62kg
Carton 1 of 2: 810 x 300 x 185mm
Carton 2 of 2: 820 x 405 x 115mm
