200AMP AC/DC MIG STICK TIG 4 IN 1 WELDER

 New and improved website Freight Free

Enquiry
200AMP AC/DC MIG STICK TIG 4 IN 1 WELDER
Click on image for larger photo
Product Code: 699104

200AMP AC/DC MIG STICK TIG 4 IN 1 WELDER
MAX 10MM PLATE, 10AMP PLUG REQUIRES
MIN 8KVA GENERATOR TO RUN REMOTELY
Border Image Border Image
Shop Price: $1,899.00
Web Price: $1,899.00  inc tax
Shipping charges may vary and are subject to change based on product dimensions and destination.

Availability: On Order
Quantity:
Weight: 24 KG
Border Image Border Image

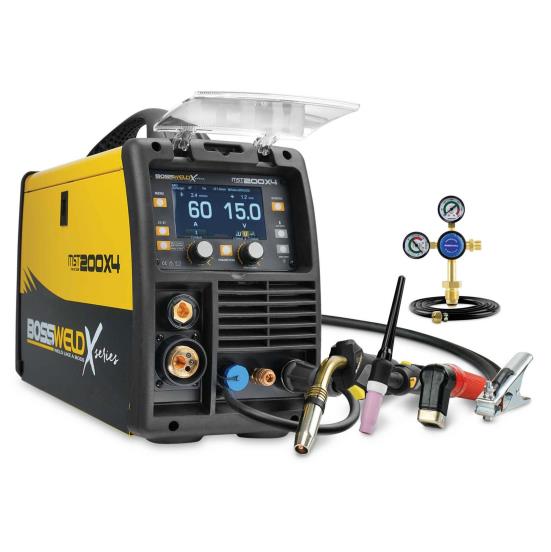

THE BOSSWELD MST 200 X4 IS A 4-IN-1 MULTI-PROCESS

INVERTER WELDER THAT PROVIDES OPPORTUNITY TO MIG, AC/DC TIG AND STICK WELD FROM THE SAME MACHINE.
HEAVY DUTY AND DESIGNED FOR INDUSTRIAL USE, WEIGHING ONLY 19KG AND FEATURING A LARGE 5" (127MM) COLOUR LCD SCREEN WITH SIMPLE TO NAVIGATE SETTINGS.
THIS MACHINE IS PERFECT FOR PROFESSIONAL CONTRACTOR.

4-IN-1 MULTI-PROCESS
MIG SYNERGIC
MIG MANUAL
MIG GAS/GASLESS
STICK
TIG AC/DC PULSE
TIG DC PULSE

KEY FEATURES
4-IN-1 MULTI-PROCESS
FITTED 10 AMP PLUG
5" COLOUR LCD SCREEN
SUITS D100/D200 SPOOLS
WEIGHS 19KG
GENERATOR FRIENDLY
2T/4T TRIGGER LATCHING
WELD PARAMETER STORAGE

MIG FUNCTIONS
MIG SYNERGIC
MIG MANUAL
MIG GAS/GASLESS
SPOOL GUN READY
BURN BACK ADJUSTMENT
PRE & POST GAS ADJUSTMENT
PRE-WELD SLOW WIRE FEED
ELECTRONIC INDUCTANCE CONTROL

TIG FUNCTIONS
TIG AC/DC PULSE
TIG DC PULSE
ARC WAVEFORM CONTROL
HIGH FREQUENCY ARC START
LIFT ARC IGNITION
PRE & POST GAS ADJUSTMENT
UP & DOWN SLOPE ADJUSTMENT
PEAK & BASE CURRENT ADJUSTMENT
FULL WELD CYCLE ADJUSTMENT
FOOT CONTROLLER COMPATIBLE - SOLD SEPERATELY (660201), NEEDS PLUG ADAPTOR (95.PA1209)

SPECIFICATIONS
PRIMARY INPUT POWER: SINGLE PHASE 230V 50-60 HZ +/-10%
DUTY CYCLE @ 40°C
o 10% @ 200A
o 60% @ 85A
o 100% @ 65A
OPEN CIRCUIT VOLTAGE
o MIG 72V
o TIG 67V
OUTPUT CURRENT RANGE
o MIG DC: 30A/15.5V~200A/24V
o TIG AC/DC: 10A/10.4V~200A/18V
o MMA AC/DC: 10/20.4V~200A/28V
I MAX
o MIG DC: 26.9A
o TIG AC: 22.3A
o TIG DC: 22.0A
o MMA AC: 28.3A
o MMA DC: 31.6A
I EFF
o MIG DC: 8.5A
o TIG AC: 7.1A
o TIG DC: 7.0A
o MMA AC: 8.9A
o MMA DC: 10A
PROTECTION/INSULATION CLASS: IP21 / S
TUNGSTEN DIAMETER RANGE: 1.0MM TO 3.2MM
THERMAL OVERLOAD: YES
MINIMUM KVA: 8.0
DIMENSIONS/WEIGHT: 58X39X22CM / 19KG

INCLUDES
BOSSWELD MST 200 X4 AC/DC MULTI PROCESS INVERTER WELDER
3 METRE BZ 24 SERIES MIG TORCH
4 METRE 17 SERIES TIG TORCH
WELDING CABLE WITH ELECTRODE HOLDER
EARTH CABLE WITH EARTH CLAMP
QUICK CONNECT GAS HOSE
ARGON DUAL STAGE TWIN GAUGE REGULATOR
SPANNER
0.8/0.9MM V GROOVE DRIVE ROLLERS (FITTED)
0.8/0.9MM KNURLED DRIVE ROLLER (SPARE)
OPERATING MANUAL
