Product Code:
11249-1

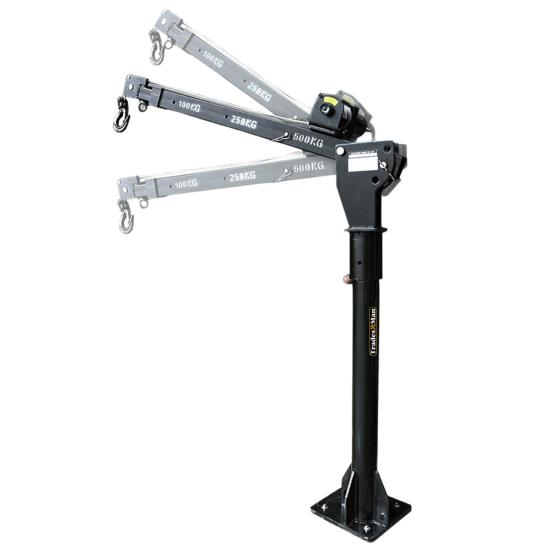

CRANE UTE 12VOLT 800KG 1800MM MAX REMOTE
HAND PIECE. LINE LIFTING CAPACITY 500KG
SINGLE LINE 800KG DOUBLE TRAY BOLT MOUNT
|
|
|
|
|
Please enter a valid quantity |
|
|
|
|
 |
|
|
|
COMPACT DESIGN, FOLDS AWAY WHEN NOT IN USE
EASILY INSTALLED,ON SITE OR BY A VEHICLE BODY BUILDER
- SINGLE LINE LIFTING CAPACITY (MAXIMUM) 500KG
- DOUBLE-LINE LIFTING CAPACITY (MAXIMUM) 800KG
- LIFTING HEIGHT MAXIMUM STANDARD (BASE TO HOOK) : 1940MM
- REACH MAXIMUM (FROM CENTER OF ROTATION): 1490MM
- ROTATION (CONTINUOUS) WITH BRAKE: 360° MANUAL
- LIFTING CABLE: 4.8MM X 4.5 METRE, 1 PIECE (FOR SINGLE-LINE LIFTING)
- LIFTING CABLE: 4.8MM X 5.5 METRE, 1 PIECE (FOR DOUBLE-LINE LIFTING)
- LINE SPEED WITH NO LOAD: 3.6M/MIN SINGLE LINE
- POWER REQUIREMENTS: 12 VOLTS DC 125 AMPS
- SWITCH CABLE: 4.2 METRE
- MOUNTING BASE: 250 X 250 X 18MM
- MOUNTING BOLT HOLE PATTERN: 170X170MM
- FINISH: POWDER COATED
FREIGHT DIMENSIONS- L 1380MM X W 380MM X H 350MM
|
