Product Code:
830-845

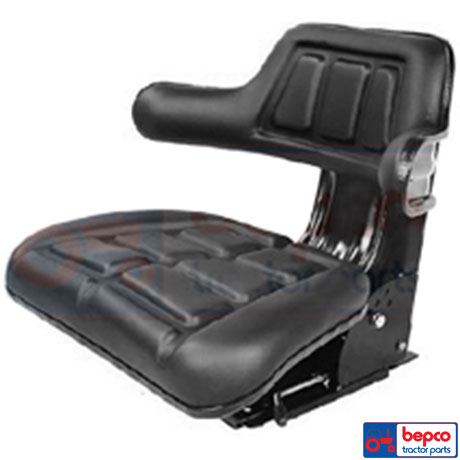

SYNTHETIC BLACK LEATHER WRAP AROUND BACK
MECHANICAL SUSPENSION (TRAVEL 80 MM).
UP TO 120KG.WITH TILT & WEIGHT ADJUSTMEN
|
|
|
|
|
Please enter a valid quantity |
|
|
|
|
 |
|
|
|
WRAP AROUND ADJUSTABLE SUSPENSION SEAT ( BLACK UPHOLSTERY)
- SLIDE RAILS (160 MM)
- ADJUSTABLE PLATE ANGLE FROM 0° TO 30° (6 POSITIONS)
- WEIGHT ADJUSTMENT (MAX 95 KG)
-ADJUSTABLE SUSPENSION SEAT (BLACK UPHOLSTERY)
NOTE: IF SEAT BELT REQUIRED USE PART NO (B8152)
FEATURES :
:- MULTIANGLE BASE ADAPTABLE TO MOST TRACTORS
:- FORE/AFT SLIDE RUNNERS PROVIDE 100MM TRAVEL
:- ADJUSTABLE SUSPENSION 60KG - 120KG
:- HEAVY DUTY 35MM SHOCK ABSORBER (EXTRA COST OPTION ON OTHER BRANDS)
:- TWIN COIL SPRING SUSPENSION ABSORBS OVER 40% OF HARMFUL VIBRATIONS
:- BASE DRILLING SUITS POPULAR TRACTORS - MF - FORD - JD - CASE IH - FIAT ETC.
:- HEAVY DUTY VINYL UPHOLSTERY IS HEAT WELDED AND WATERTIGHT
:- FULL RANGE OF SPARE PARTS AVAILABLE
SEAT SIZE
WIDTH OF SEAT 510MM
WIDTH OF WRAP AROUND ARMS 560MM
HEIGHT OF SEAT 517MM
FULL DEPTH OF SEAT FRONT TO BACK 550MM
FLOOR TO TOP OF SEAT PAD 245MM
SIZE: 590mmL X 470mmH X 260mmW
.072m3
|
View Complete Range:
|
TRACTOR-DOZER PARTS > SEATS - TRACTOR*
|
|
|
