Product Code:
MS390219
STRAPPING TOOL TAKES STRAPPING FROM
9.5MM TO 19MM (ALL 3000 SERIES STRAP
& 82400 SHEATHED STRAP).
|
|
|
|
|
Please enter a valid quantity |
|
|
|
|
 |
|
|
|
- STRAP SIZE 9.5 TO 20MM
- STAINLESS STEEL BANDING TOOL
- LOW COST
- VERSATILE
- BANDS AND BUCKLES AVAILABLE
Band Strapping Pliers Tool :
Stable&Effect-Spring loaded gripper lever improves ease of use,permits a very easy and efficient operation and outperforms other strapping tools by its ruggedness and its high reliability.Can tension above 2,400 lbs of force, after that this tool cuts of the tail of the clamp that you are forming.
Durable Pliers:This Strapping Tensioner is made from high quality stainless steel with epoxy powder coated finish,anti-cossision,weatherproof,lightweight,durable,longtime to use.

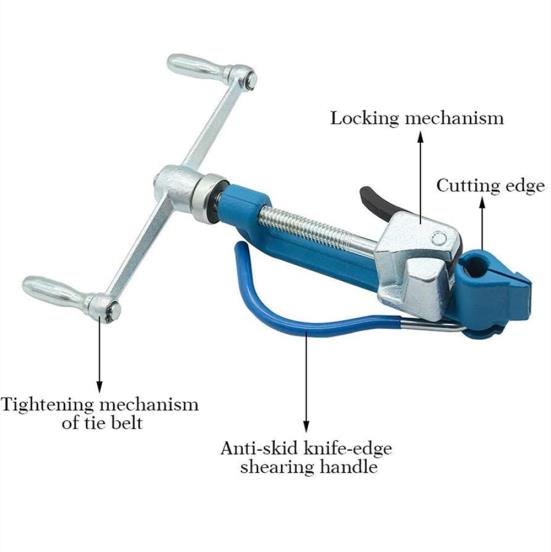

Heavy duty steel band strapping tool features a premium tension handle, spring loaded gripper, built-in cutter and screw rod for added torque and durability.
Sharply Strapping Packer Machine -The operation knob is coordinated and properly matched, and the tightening handle and the adjustment knob are combined to fix the cable tie, the cutter head control knob cooperates with the sharp special cutter head,saves time and effort.
The tensioning machine adopts a tensioning belt and a cut-off cable tie function, widely used for tighten and cut off the spare bending being formed used to apply stainless steel band. Use for steel strapping, banding, crimping and cutting tool.
Feature:
The tightening machine is taut band and cut the cable tie function, can be suitable for a variety of specifications of the stainless steel cable tie, strong commonality, easy to operate.

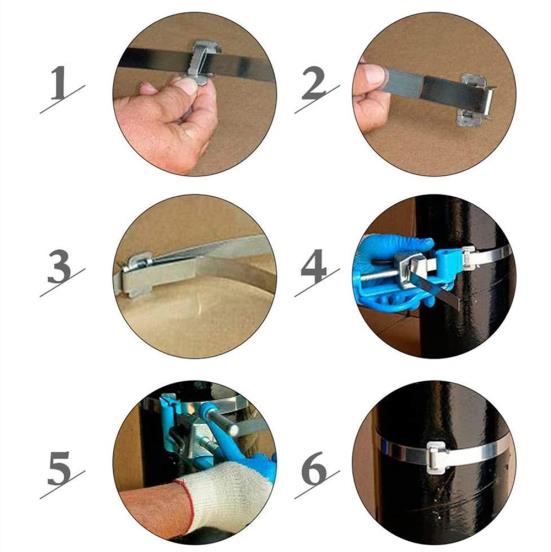

How to use :
Remove the stainless steel cable ties put clasps or direct to take Length cable ties through the bundled objects;
Cable ties placed in tight with the head of taut block the opening and the pressure in the pressure of the following;
Shake horizontal rotating screw taut cable ties;
Up against tight with the machine so that the pressure to buckle up in the tie;
Right hand cutter handle cut off the cable tie away tight with a machine with a hammer smashing,live clasps auricular suppress Ties head
Specification:
For steel strip width: 4.6-25.0mm;
Apply the strip thickness: 0.25-1.2 mm;
Size:47.0 cm * 26.0 cm * 20.0 cm
Weight: 1.6Kg
Stainless Steel Banding Strap:

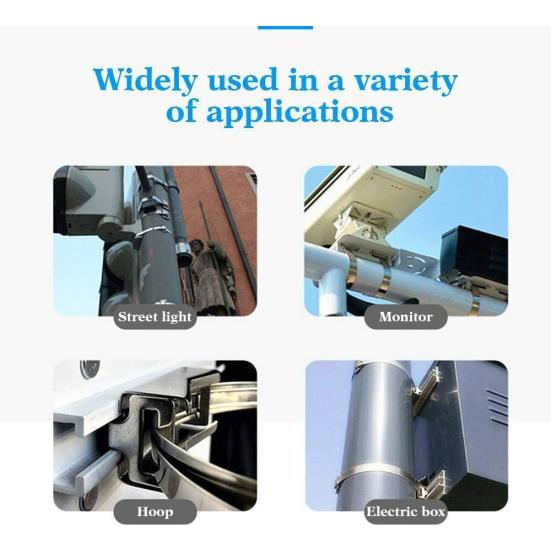

Application:
Cable Laying
Street Lighting & Motorway Sign Mounting
Oil & Gas Industry
Pipe Marking
Securing Hosing
|
