MILL DRILL GEARED & TILTING HEAD 3MT 240

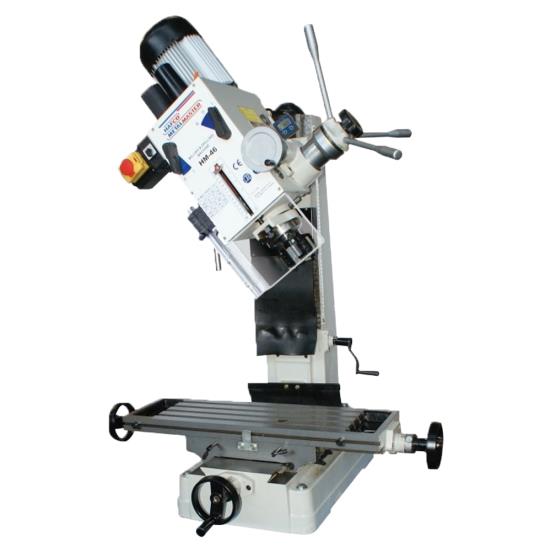

Click on image for larger photo
Product Code: M138

MILL DRILL GEARED&TILTING HEAD 3MT 240V
TILTING HEAD 6 SPEEDS 95 TO 1600 RPM
TABLE SIZE 730X210MM TRAVELS 475MM
Border Image Border Image
Shop Price: $3,399.00
Web Price: $3,399.00  inc tax
Shipping charges may vary and are subject to change based on product dimensions and destination.

Availability: In Stock
Quantity:
Weight: 345 KG
Border Image Border Image
WITH THE ADDITIONAL BENEFIT OF A 6-SPEED 95-1600RPM, GEAR DRIVEN HEAD WHICH CAN BE TILTED UP TO 90º EITHER SIDE OF THE VERTICAL. THIS FEATURE ALLOWS THE HEAD TO BE POSITIONED IN A VARIETY OF POSITIONS, ALLOWING A WHOLE RANGE OF MILLING, SLOTTING, GROOVING, DRILLING AND BORING OPERATIONS TO BE CARRIED OUT.

THE USUAL HANDLE-DRIVEN DOWN FEED IS AVAILABLE FOR PRECISION DRILLING AND THERE IS A FINE MANUAL DOWN-FEED CONTROL FOR PRECISE VERTICAL MILLING.

THE MOTOR IS CONTROLLED BY A STANDARD FORWARD AND REVERSE ON/OFF SWITCH.

THERE IS A HEAVY DUTY STEEL STAND AVAILABLE AS AN EXTRA, STRONGLY RECOMMENDED BEARING IN MIND THE WEIGHT OF THE MACHINE.

ALSO AVAILABLE IS A OPTIONAL POWER FEED ATTACHMENT WHICH FITS TO THE LEFT HAND END OF THE TABLE AND PROVIDES A SMOOTH, VARIABLE SPEED LONGITUDINAL DRIVE.
FEATURES

* GEAR DRIVEN HEAD 6 SPEEDS
* DOVETAIL VERTICAL Z-AXIS
* MILL HEAD TILTS TO ±90º FROM VERTICAL WITH DIGITAL DISPLAY
* LARGE 730 X 210MM GROUND WORK TABLE WITH T-SLOTS
* ADJUSTABLE LEADSCREW NUTS ELIMINATING BACKLASH ON BOTH AXIS
* FINE FEED HAND WHEEL OPERATING QUILL FEED
* FORWARD AND REVERSE ON/OFF SWITCH
* DIGITAL TILTING HEAD GAUGE
* 3MT SPINDLE WITH 75MM DIAMETER QUILL
* ADJUSTABLE TABLE AND DRILL LENGTH STOPS
* RACK AND PINION WIND-UP HEAD
* REAR SLIDE-WAY COVER AND SLIDE CLAMPS ON ALL AXIS
* SPINDLE LOCK FOR QUILL
* TABLE LOCK ON BOTH AXIS
* METRIC DIAL GRADUATIONS @ 0.05MM FOR X & Y AXIS

INCLUDES -

DIGITAL TILTING HEAD GAUGE
DRILL CHUCK & ARBOR
FACE CUTTER & ARBOR
SAFETY CUTTER GUARD
3-2MT SLEEVE
M12 DRAWBAR
1/2" X 12TPI WHITWORTH DRAWBAR
