Product Code:
GB5TLT

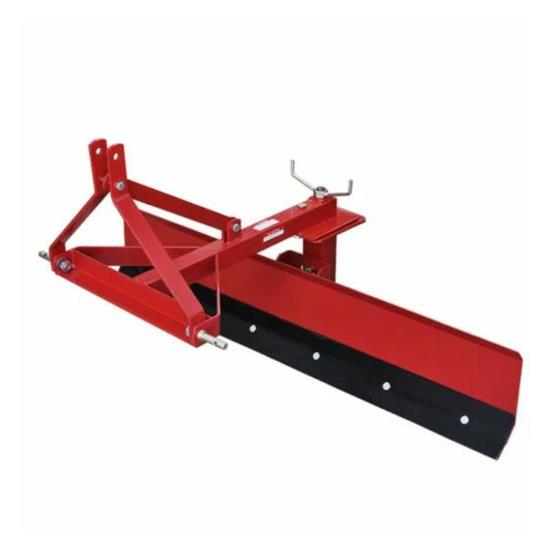

GRADER BLADE 5FT 1500MM 3PL ANGLE TILT
CAT1 3 POINT LINKAGE MOUNTING, 4 WAY
ANGLE TILT SETTINGS AVAIALABLE
|
|
|
|
|
Please enter a valid quantity |
|
|
|
|
 |
|
|
|
1500MM 5 FEET GRADER BLADE 3 POINT LINKAGE
THIS GRADER BLADE IS PERFECT FOR LEVELING, GRADING OR TIDING UP DIRT OR GRAVEL PATHS, ROADS OR DRIVEWAYS ANYWHERE AROUND THE PROPERTY.
FEATURES:
- CAN BE CENTRE MOUNTED OR OFFSET TO THE LEFT OR RIGHT
- TRACTOR CONNECTION CATEGORY 1, 3 POINT LINKAGE
- REVERSIBLE BLADE CAN GRADE BACKWARDS OR FORWARDS
- REPLACEABLE HARDENED STEEL CUTTING BLADE
- MULTIPLE ANGLE ADJUSTABLE - BLADE ROTATES 360 DEGREES (5 POSITIONS FORWARD AND 5 POSITIONS REAR FACING)
The rotate and tilt grader is ideal for levelling all types of loose materials including sand, stone, bark, soil and mixed aggregates as used on dirt roads, horse arenas etc.
The tilt function enables forming materials into a slope or a crown allowing water run off, particularly useful when grading a road or track.
Features:
Blade width 1500mm (5ft) wide
Suitable for tractors 20hp to 45hp
Tractor connection Cat 1, 3 point linkage
Reversible blade can grade backwards or forwards
Replaceable hardened steel cutting blade
Multiple angle function- Blade rotates 360 degrees (5 positions forward and 5 positions rear facing)
3 Position tilt function - Blade can be centered or tilted to left or right.
Assembly Required ? This item is delivered in a crate or frame and is packed for transport, some assembly is required before use
|
View Complete Range:
|
TRACTOR ATTACHMENTS > GRADER BLADES 3PL
|
|
|
|
