Product Code:
DDP/1-1/2
DOUBLE DIAPHRAGM PUMP 1-1/2" 166LPM
1-1/2 INLET & OUTLET 115PSI MAX AIR
FOR WASTE OIL-DIESEL & GREASE 11.5KG
|
|
|
|
|
Please enter a valid quantity |
|
|
|
|
 |
|
|
|
Air Operated Diaphragm Pump with Unmatched Durability and Leak-Proof Design
Premium PTFE Diaphragm Ensures Corrosion Resistance and Efficiency
Exceptional Pneumatic Performance with Effortless Integration

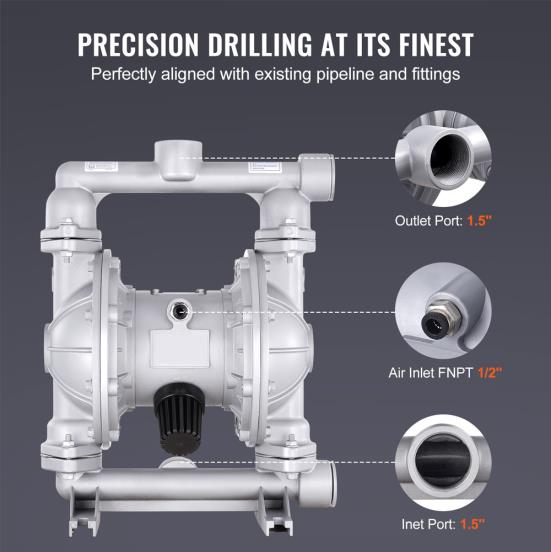

The pump provides high-quality pneumatic performance. It integrates seamlessly with existing pipelines. Standard inlet/outlet dimensions are 1.5 inches. The air inlet size is FNPT 1/2 inch. This makes it easy to fit into your setup. You can easily adapt the pump to any system you have set up or run. The pump improves your fluid handling systems. With its professional pneumatic design, efficiency improves. Get a reliable pneumatic transfer pump that works well with your current equipment. Experience the power of a hygienic and effective pneumatic system. Our pump is built to deliver consistent performance!
Low Noise Operation for a Quieter and More Comfortable Workspace
Versatile Fluid Handling, Ideal for Various Industries and Fluids
We have a wide range of fluids. Our oil transfer pump is capable of processing waste oils, alcohol, and hydraulic oil. It can process waste oils, alcohol, and hydraulic oil. Then it's also used for gasoline, diesel & detergents as well. This versatile tool provides reliable performance. You can use it in many industries like petroleum, metallurgy, and mining. Our wastewater oil pumps are suitable for all sorts of applications. No matter your industry, our pump excels in coatings, printing, water treatment, and automotive fields where our system meets your requirements. With this pump, you get the best results with unmatched efficiency and reliability. Get a pump that works well in different settings. Trust VEVOR for everything you need to transfer fluid transfers.

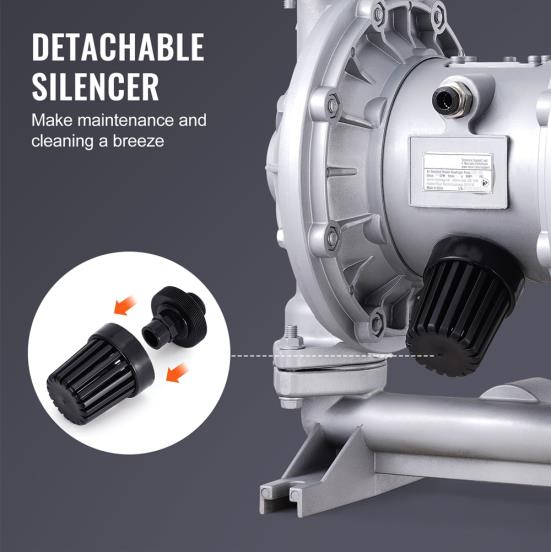

Easy Maintenance and Cleaning with Detachable Design
High Flow Rate and Max Pressure for Enhanced Productivity

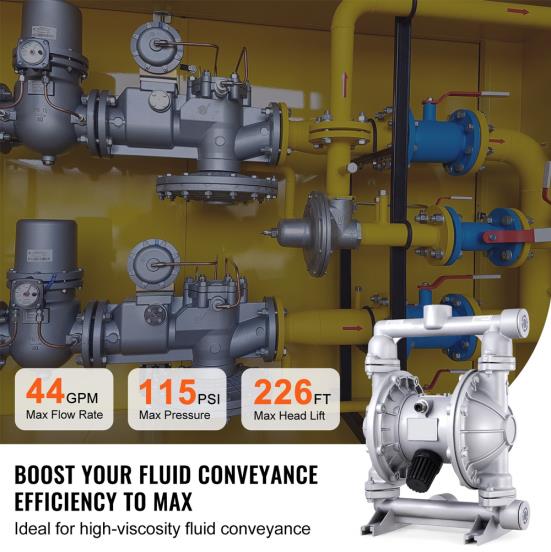

The pump provides you with a high flow rate of 44 GPM. It also offers 115 PSI max pressure, which improves productivity in your operations. The pump?s performance is top-tier. This feature is designed to handle high demands efficiently. Max Head Lift of 226 feet adds to its versatility! You get a dependable pump that boosts your operation. Experience the power of the VEVOR hygienic diaphragm pump.

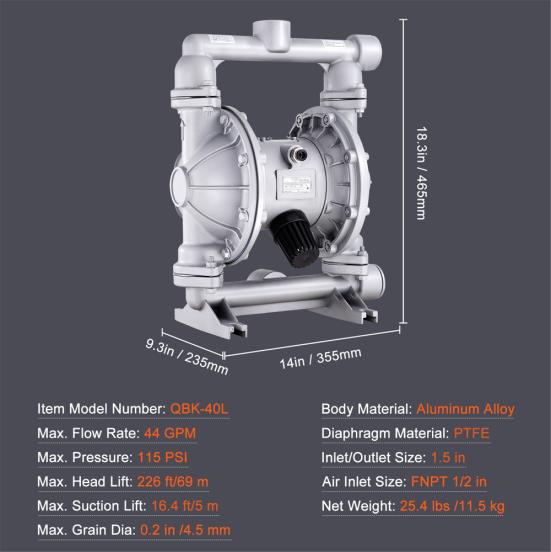

Specification
Item Model Number
QBK-40L
Max. Flow Rate
44 GPM
Max. Pressure
115 PSI
Max. Head Lift
226 ft/69 m
Max. Suction Lift
16.4 ft/5 m
Max. Grain Dia
0.2 in /4.5 mm
Body Material
Aluminum Alloy
Diaphragm Material
PTFE
Inlet/Outlet Size
1.5 in
Air Inlet Size
FNPT 1/2in
Net Weight
25.4 lbs /11.5 kg
|
