Product Code:
L-DDP25

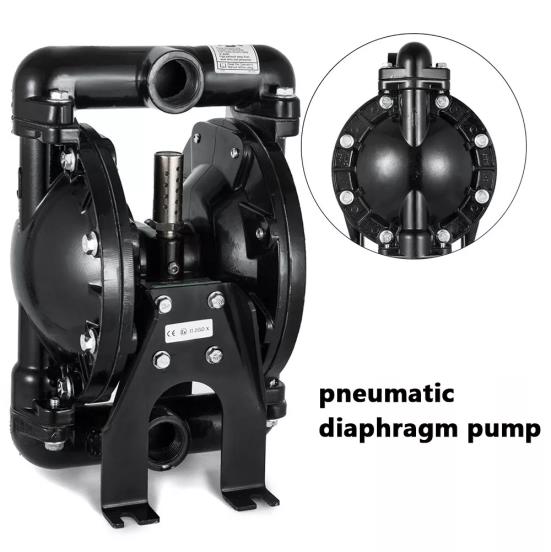

DOUBLE DIAPHRAGM PUMP 1" 132LPM 1" BSP
ALUMINIUM AND POLYPROPYLENE
MAXIMUM AIR PRESSURE 862KPA (125PSI)
|
|
|
|
|
Please enter a valid quantity |
|
|
|
|
 |
|
|
|
Country/Region of Manufacture CHINA
Product
Diaphragm pump
Type
Double diaphragm
Operation Type
Air-operated
Model
QBY4-25L
Body Material
Aluminum
Inlet Port
1 inch (25 mm)
Outlet Port
1 inch (25 mm)
Air Inlet Size
NPT 1/2 inch (12.7 mm)
Average Air Consumption
38 CFM
Max Flow Rate
9 m3/h (35 GPM)
Suction
0-5 m (0-16.4 ft)
Max Suspended Solids
3 mm (1/8 inch)
Max Head
84 m (275.59 ft)
Max PSI
120 psi
Max Temp
Max Temp
Self-Priming Dry
3 m (10 ft)
Self-Priming Wet
4.6 m (15 ft)
Manifold Connection
Single
Valve Type
Ball
Acetal
Check Seat Material
Check Seat Material
Diaphragm Material
Nitrile
EAN
Does not apply
UPC
Does not apply
|
