NLA* AIR CON CHARGING SCALE 100KG 2-5-7-
Click on image for larger photo
Product Code: 17133-2

AIR CON CHARGING SCALE 100KG 2-5-7-10 GM
100KG LOAD CAPACITY, 2 GRAM RESOLUTION,
0.5% ACCURACY UNDER ALL CONDITIONS.
Border Image Border Image
Shop Price: $174.00
Web Price: $174.00  inc tax

Availability: In Stock
Quantity:
Weight: 4 KG
Border Image Border Image

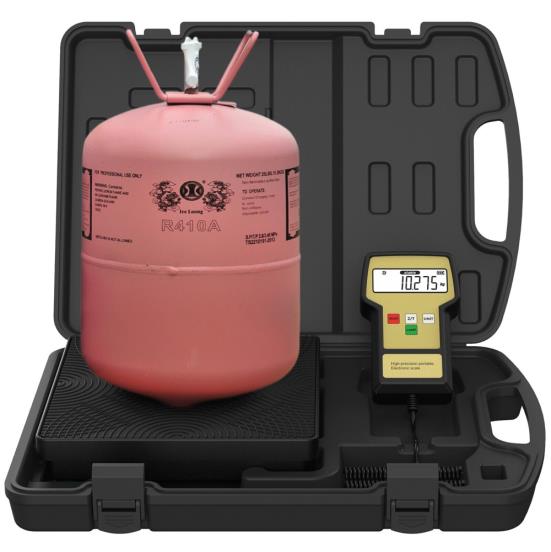

FAMOUS WEL-BILT BRAND AIR CON CHARGING SCALE 100KG 2-5-7-10 GM

IT CAN ALSO BE USED FOR GENERAL WEIGHING APPLICATIONS WHERE RESOLUTION AND ACCURACY IS CRITICAL.
THE DS-22R IS PROGRAMMABLE AND HAS A BUILT IN ALARM TO INDICATE A PROGRAMMED THRESHOLD HAS BEEN EXCEEDED.
ATTACHING THE DS-220R TO THE CM-500 AUTOMATIC CHARGING MODULE ALLOWS AUTOMATIC REFRIGERANT CHARGING FOR A/C SYSTEMS.

FEATURES:
- REFRIGERANT CYLINDER CAPACITY INDICATION
- RUGGED, LOW PROFILE DESIGN USES LESS WORK AND STORAGE SPACE
- LIGHTWEIGHT AND EASILY TRANSPORTED

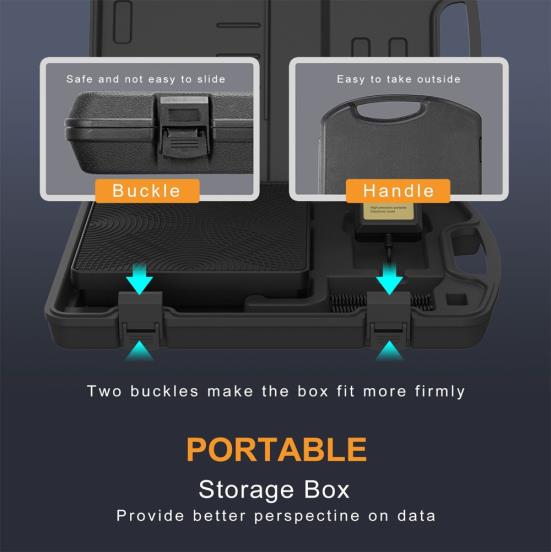

- EQUIPPED WITH CARRYING HANDLE AND NYLON CARRY BAG WITH SHOULDER STRAPS AND ACCESSORY POCKET
- HIGH VISIBILITY LCD DIGITAL DISPLAY LARGE, HIGH CONTRAST BACKLIT DISPLAY ALLOWS EASY VIEWING IN ALLENVIRONMENTS.
- POWER IS 5 X AA BATTRIES 60 HOURS USE
- INTEGRATED HINGED EASEL.
- CONTROL MODULE CAN BE RESTED ON FLAT SURFACE OR HUNG.
- CONTROL MODULE AND LONG 2 METRE COIL CABLE STORES INSIDE PLATFORM WHEN NOT IN USE.
- LOAD CELL IS EXTREMELY LINEAR ACROSS FULL WEIGHT RANGE AND WILL NOT DRIFT DURING HIGH AUSTRALIAN SUMMER TEMPERATURES
- WHEN CHARGING IS COMPLETE, THE SOLENOID VALVE WILL AUTOMATICALLY SHUT OFF AND WARN THE USER.
- MEMORY FEATURE ALLOWS STORAGE OF UP TO 100 CHARGE/RECOVERY PROGRAMS.
- AUTOMATIC SHUT OFF AFTER 10 MINUTES OF NON-USE. BACKLIGHT WILL SHUT OFF AFETR 3 MINUTES OF NON-USE
- MANUAL OPERATION PROCESS
- ADVANCED DESIGN
- FAIL SAFE FEATURE WILL CLOSE OFF THE VALVE IN THE EVENT OF LOST POWER DUE TO LOW BATTERY OR IF THE UNIT IS TURNED OFF
- "FULL" DISPLAY WHEN THE WEIGHT EXCEEDS THE SPECIFIED RANGE
- MEASURES KILOGRAMS, POUNDS & OUNCES.

SPECIFICATIONS:
CAPACITY: 100KG, (220pounds)
ACCURACY: 0.5% OF READING]
RESOLUTION: 2G, 5G AND 10G USER SELECTABLE
POWER: 4 X 1.5VDC AAA BATTERIES
BATTERY LIFE: 30 HOURS
OPERATING TEMP.: 0 DEGREES CELSIUS - 60 DEGREES CELSIUS
DIMENSIONS: 26.7CM X 26.7CM X 4.5CM
